Sounding Future

Capturing a Place using Ambisonics

Most of us hear. Very few of us listen. Field recordist John Wills traces the practice of ambisonic capture — from the absence of anthropophony in a Scottish woodland to the eight-speaker studio where those recordings become something else entirely.

Share
Capturing a Place using Ambisonics

© John Wills

Ian and Clare

The first thing that normally happens when somebody arrives for the residency is they stand in the woodland garden here and notice the sound that's missing from the soundscape they're used to, and that is anthropophony.

Three Voices of Nature

Bernie Krause, the famous naturalist and soundscape ecologist, redefined the sources of the natural soundscape in terms of their three main components: geophony, biophony, and anthropophony.

  • Geophony (the sound of naturally occurring non-biological sounds like thunder, wind or rain)

  • Biophony (collective acoustic signatures generated by all sound-producing organisms in a given habitat at a given moment.) and finally…

  • Anthropophony, which is the sounds of us split into two subcategories: controlled sound, such as music, language, and theatre, and chaotic or incoherent sound, sometimes referred to as noise.

© John Wills

50 Hz Hum. Anthropophony at its most elemental — the electromagnetic signature of mains electricity, recorded in the field.

Learning to Listen

The lack of sound pollution can sometimes be overwhelming to unaccustomed ears. It makes you want to be still, and rather than just hearing, you start to listen, and this is the first step to capturing a place with audio.

Listening to your environment in great detail, even if you at first think it is almost silent, brings the smallest sounds into focus. Birds in the far distance start to enter your personal soundscape, as well as the textures of a breeze across reeds around a loch fed by a small stream far away. Louder, more local sounds are tempered by concentrating on the distant ones until the space is defined.

Into the Field

Now the recording process can begin. The set-up is simple. The ambisonic mic is generally used on a lightweight stand and connected to the recorder. I then point out a few things that need to be done to get the best results. The first one is to listen again but with headphones on. How does it sound? Is there the sound of the microphone lead being blown by the wind and hitting the stand or any other undesired extraneous noise? Next, setting the recording levels to make sure there's as little floor noise from the microphone as possible. Once all's good, it's time to press record and label your recording by simply stating the date and your location. Importantly, move well away from the microphone, because it's a three-dimensional recording that you are making and if you are close to the mic your body will create a shadow on playback in the three-dimensional sphere.

Field recording

© Beth Chalmers

Field recording

When recording with an ambisonic microphone, you monitor it with headphones which are being fed a binaural version of the sound you are capturing. It immediately sounds fascinating and the whole process is extremely meditative. It's a bit like viewing a slide under a microscope. Binaural playback is important as it simulates the hearing cues created by acoustic interaction between our bodies and the environment around us and gives a good indication of how the ambisonic recording will sound through an array of loudspeakers once back in the studio — and of course, a binaural rendering for future headphone users.

The best recordings come with patience. Over time, all the wildlife disturbed by approaching the site and setting up begin to return and the soundscape starts again.

© John Wills

Bees. Biophony returning. Recorded at the residency after the setup — the soundscape reasserting itself.

Recording this way by being still for long periods becomes a very meditative experience, and this stillness with deep listening is one of the great benefits of field recording.

Art Begins in the Field

When an artist comes to the residency, they may or may not have a plan or work in mind. Often, the recordings made here inspire new work, which is very rewarding. New skills that lead to an artistic discipline being approached from a new angle are very desirable.

To experience ambisonic recordings in the eight-speaker studio exclusively for residents during their residency opens their minds to new ways of working, and experimentation with these sounds is very much encouraged. What if I try this…?

Studio

© John Wills

Studio

Basic post-production can be learnt and incorporated easily within a week-long residency, and it's there where the magic happens. Once it's realised that the soundscape can also be enhanced by the addition of a mono or stereo sound that can live in and move around in this three-dimensional world, the project becomes even more exciting. Maybe the addition of a voice or instrument, or perhaps we go out to the field and start to look underground with specialised soil mics or underwater with hydrophones. Macro recording of insects living in the stems of plants communicating by a process called stridulation where specialised body parts are used to make sound. Maybe we can modulate them.

© John Wills

Foxglove Stem. Interior Macro recording inside a plant stem, capturing insect communication through stridulation.

The realism of recording can be turned into a new magical experience by the artist.

© John Wills

Woodpecker Morph. A field recording transformed — the point where naturalism becomes composition.

From Rainforest to Gallery

The sound of sap rising in an ancient oak tree was the inspiration for artist Pinkie Maclure's ambisonic performances in the Glasgow Contemporary Centre of the Arts.

I was so glad she opted for four live performances in the exhibition's run using ambisonic playback. Using live sampling of her voice, we could manipulate it to move in the three-dimensional soundscape that we'd created in the gallery, adding natural sounds recorded here in the rainforest.

Field recording is always evocative of a place, and that sense of place and what it means to you is something you might not think about much in your daily life. To start listening rather than just hearing is a truly wonderful thing, and spatial playback preserves and gives one the opportunity to share that experience.

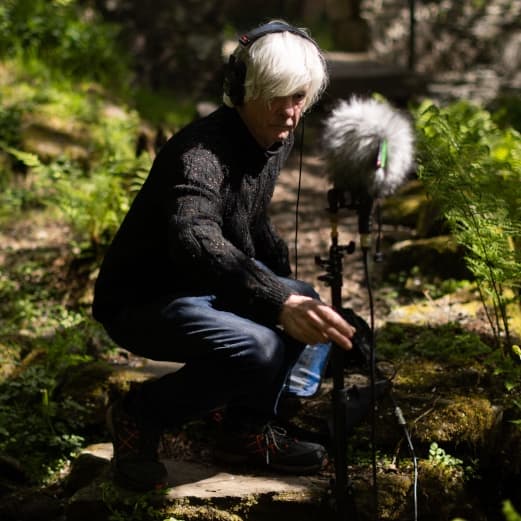

Recording in the field with an ambisonic microphone

Beth Chalmers

About the author

John Wills

I have been a musician with top 40 album releases and sound engineer/producer since the late 1980's. I have always had a love of field recording & spatial sound and I've created a small 8 speaker ambisonic studio called Positive Ambisonics on the fringe of the ancient Scottish rainforest in Argyll.
